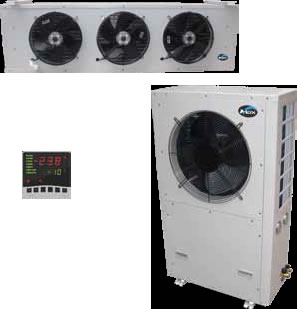

BDX Split Splits Unit Hermetic Splits(vertical)
Units Equipped With â— Hermetic compressor â— External balance expanson valves â— High and low Pressure control â— Automatic defrosting â— Automatic controller â—The negative refrigeration unit with liquid cooling system and condensing temperature regulating system
Units Equipped With
â— Hermetic compressor
â— External balance expanson valves
â— High and low Pressure control
â— Automatic defrosting
â— Automatic controller
â—The negative refrigeration unit with liquid
cooling system and condensing temperature
regulating system
|
M o d e l |
O u tp u t ( W ) |
In p u t （ K w ） |
P o w e r V o lta g e |
C u r r e n t （ A ） |
R e f r ig e r a n t （ K g ） |
C o ld R o o m V o lu m e （ m 3 ） |
E x te r n a l D im e n s io n （ m m ） |
||
|---|---|---|---|---|---|---|---|---|---|
|
O u td o o r U n it |
In d o o r U n it |
||||||||
|
0 ℃ |
B D X -1 P -S + |
1 2 0 0 |
0 .9 0 5 |
2 3 0 V /1 /5 0 |
4 .8 |
1 .4 |
5 |
9 3 0 * 2 8 0 * 5 5 0 |
7 2 5 * 4 0 0 * 4 6 5 |
|
B D X -1 .5 P -S + |
2 9 5 0 |
1 .2 9 5 |
2 3 0 V /1 /5 0 |
8 .2 |
1 .9 |
1 0 ～ 1 5 |
9 3 0 * 2 8 0 * 5 5 0 |
1 0 3 0 * 4 0 0 * 4 0 5 |
|
|
B D X -2 P -S + |
3 9 0 0 |
1 .6 4 |
2 3 0 V /1 /5 0 |
9 .7 8 |
2 |
2 0 ～ 2 5 |
1 0 0 0 * 3 0 0 * 6 2 0 |
1 0 3 0 * 4 0 0 * 4 0 5 |
|
|
B D X -3 P -S + |
5 8 0 0 |
2 .6 7 |
2 3 0 V /1 /5 0 |
1 1 .6 |
2 .7 |
3 0 ～ 4 5 |
1 0 0 0 * 3 0 0 * 6 2 0 |
1 1 3 0 * 4 0 0 * 4 6 5 |
|
|
B D X -4 P -S + |
7 9 5 0 |
3 .4 1 |
4 0 0 V /3 /5 0 |
5 .9 |
3 .3 |
5 0 ～ 6 0 |
7 5 0 * 3 4 0 * 1 2 1 0 |
1 5 8 0 * 4 0 0 * 4 6 5 |
|
|
B D X -5 P -S + |
9 9 5 0 |
4 .2 7 5 |
4 0 0 V /3 /5 0 |
7 .3 5 |
4 |
6 0 ～ 7 0 |
9 0 0 * 4 2 0 * 1 3 6 3 |
1 5 8 0 * 4 0 0 * 4 6 5 |
|
|
B D X -6 P -S+ |
1 1 6 5 0 |
5 .1 |
4 0 0 V /3 /5 0 |
8 .8 |
4 .3 |
7 0 ～ 8 0 |
1 3 0 0 * 4 2 0 * 1 2 1 0 |
1 5 2 0 * 6 6 5 * 5 5 0 |
|
|
B D X -8 P -S + |
1 3 5 5 0 |
6 .2 0 2 |
4 0 0 V /3 /5 0 |
1 1 .8 |
4 .8 |
8 0 ～ 1 0 0 |
7 2 0 * 7 6 0 * 9 2 7 |
1 5 2 0 * 6 6 5 * 5 5 0 |
|
|
B D X -1 0 P -S + |
1 9 4 0 0 |
8 .0 9 |
4 0 0 V /3 /5 0 |
1 4 .7 |
5 .3 |
1 0 0 ～ 1 5 0 |
1 4 2 0 * 7 5 7 * 9 2 7 |
1 9 2 0 * 7 1 5 * 6 8 0 |
|
|
-20℃ |
B D X -1P-S- |
700 |
0.905 |
230V /1/50 |
3.1 |
1.4 |
1.5 |
930*280*550 |
725*400*465 |
|
B D X -2P-S- |
1870 |
1.64 |
230V /1/50 |
9.2 |
2 |
10 |
1000*300*620 |
1130*400*465 |
|
|
B D X -3P-S- |
3000 |
2.67 |
230V /1/50 |
9.9 |
2.7 |
15～18 |
1000*300*620 |
1130*400*465 |
|
|
B D X -4P-S- |
4050 |
3.41 |
400V /3/50 |
5.3 |
3.3 |
18～24 |
750*340*1210 |
1580*400*465 |
|
|
B D X -5P-S- |
5100 |
4.275 |
400V /3/50 |
6.6 |
4 |
24～30 |
900*420*1363 |
1520*665*550 |
|
|
B D X -6P-S- |
6000 |
5.1 |
400V /3/50 |
7.9 |
4.3 |
30～35 |
1300*420*1210 |
1520*665*550 |
|
|
B D X -8P-S- |
7050 |
6.202 |
400V /3/50 |
10.6 |
4.8 |
35～45 |
720*760*927 |
1520*665*550 |
|
|
B D X -10P-S- |
10900 |
8.09 |
400V /3/50 |
13.3 |
5.1 |
45～55 |
1420*757*927 |
1920*715*680 |
Installation Drawing
BDX Splits Refrigeration Unit
 |
 |
 |
 |
